| 原厂 | Amphenol | 制造商型号 | HFW12S-2STE1LF |
|---|---|---|---|
| 供应商 | Hong Tech | 供应商型号 | HFW12S-2STE1LF |
| 类型 | FFC/FPC连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

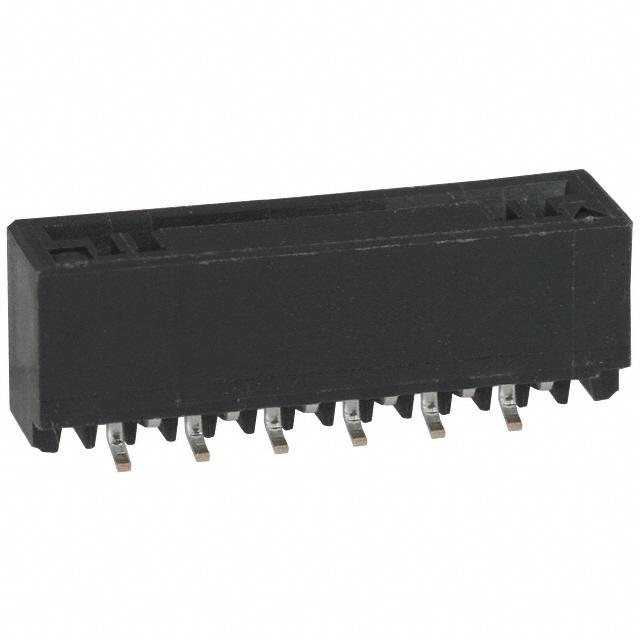

| 产品描述 | 12 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount | ||
| 规格参数 | 数值 |
|---|---|
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Number of Positions | 12 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.209" (5.30mm) |
| Locking Feature | - |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 1A |
