| 原厂 | Amphenol | 制造商型号 | 10085901-6015ELF |
|---|---|---|---|
| 供应商 | Hong Tech | 供应商型号 | 10085901-6015ELF |
| 类型 | FFC/FPC连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

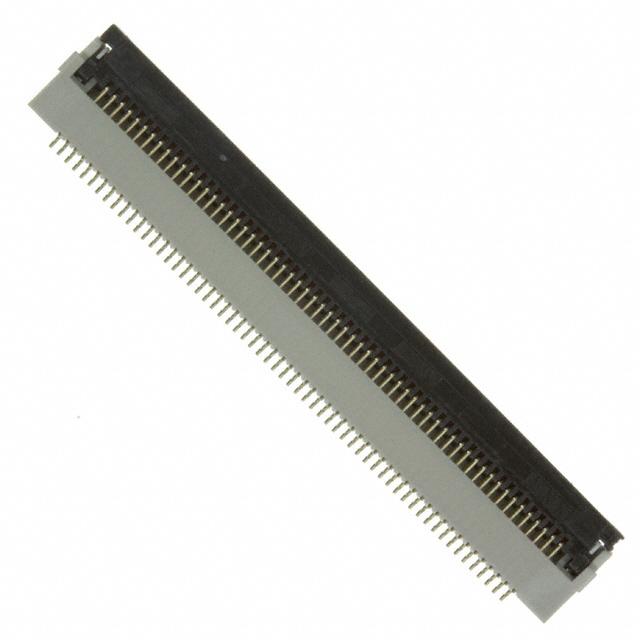

| 产品描述 | 60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | ||
| 规格参数 | 数值 |
|---|---|
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 60 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 0.5A |
