| 原厂 | Amphenol | 制造商型号 | 10018783-10201TLF |
|---|---|---|---|
| 供应商 | Hong Tech | 供应商型号 | 10018783-10201TLF |
| 类型 | 卡缘连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

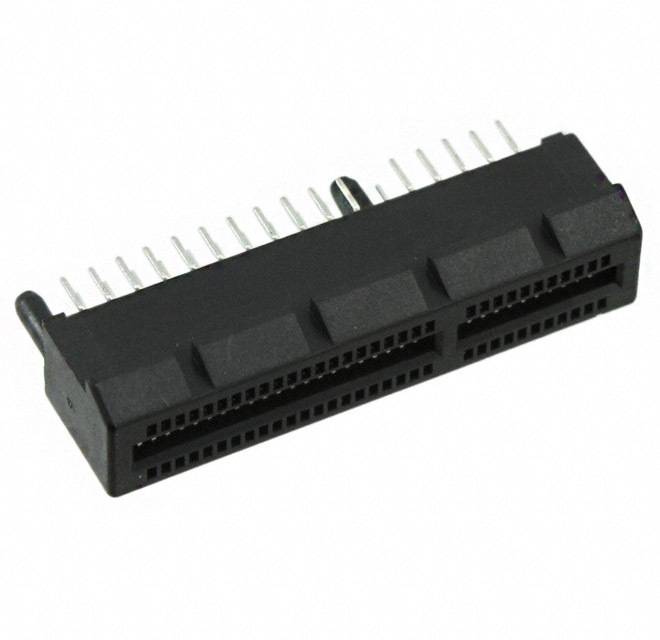

| 产品描述 | CONN PCI EXPRESS 64POS VERT PCB | ||
| 规格参数 | 数值 |
|---|---|
| Card Type | PCI Express™ |
| Gender | Female |
| Number of Positions/Bay/Row | 11; 21 |
| Number of Positions | 64 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.039" (1.00mm) |
| Features | Board Guide, Locking Ramp |
| Mounting Type | Through Hole |
| Termination | Solder, Staggered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -55°C ~ 85°C |
| Material - Insulation | Polyamide (PA), Nylon, Glass Filled |
| Read Out | Dual |
