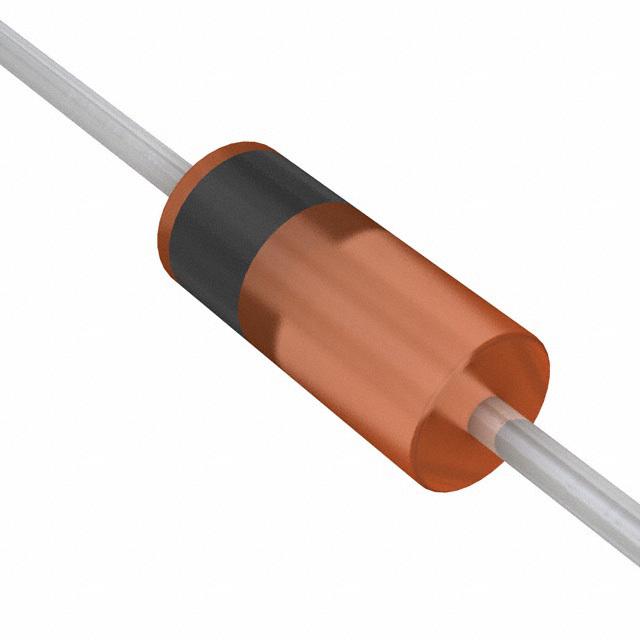

| 原厂 | Vishay | 制造商型号 | BAV21-TR |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | VISH-0145541 |
| 类型 | 整流二极管 | 批号 | -- |
| 包装数 | 50 | 包装 | -- |
| 产品描述 | DIODE GEN PURP 200V 250MA DO35 | ||
| 规格参数 | 数值 |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50ns |
| Current - Reverse Leakage @ Vr | 100nA @ 200V |
| Capacitance @ Vr, F | 1.5pF @ 0V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 |
| Operating Temperature - Junction | 175°C (Max) |
