| 原厂 | STMicroelectronics | 制造商型号 | STTH30R04D |
|---|---|---|---|
| 供应商 | A7B054 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | STTH30R04D |
| 类型 | 整流二极管 | 批号 | -- |
| 包装数 | -- | 包装 | -- |
| 产品描述 | DIODE GEN PURP 400V 30A TO220AC | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.45V @ 30A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100ns |
| Current - Reverse Leakage @ Vr | 15µA @ 400V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |

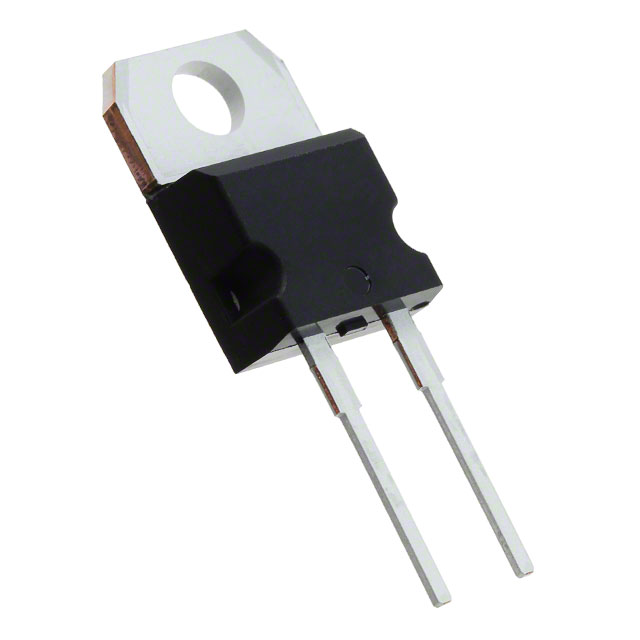

| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Base Part Number | STTH30R04 |
