| 原厂 | Honeywell | 制造商型号 | SEP8705-002 |
|---|---|---|---|
| 供应商 | ARROW | 供应商型号 | 1798224-QUOTE |
| 类型 | 红外/UV/可见光发射器 | 批号 | 1737 |
| 包装数 | 1 | 包装 | QUOTE |

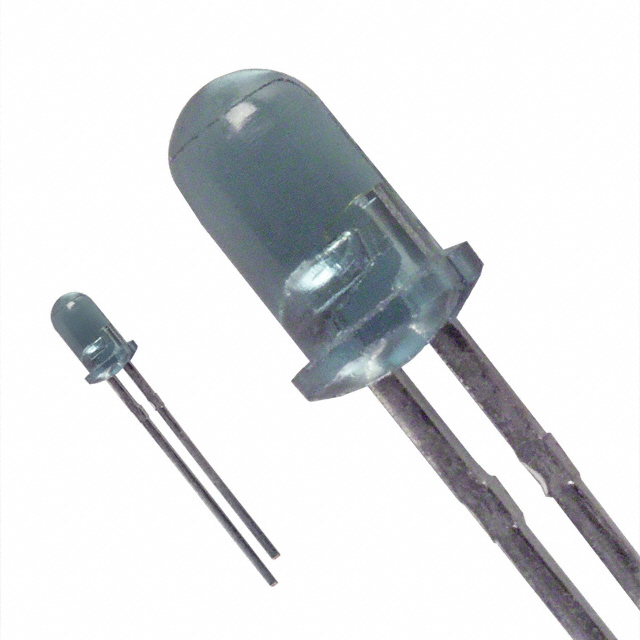

| 产品描述 | EMITTER IR 880NM 50MA RADIAL | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 1.4mW/cm² @ 20mA |
| Wavelength | 880nm |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 15° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
