| 原厂 | Illinois Capacitor | 制造商型号 | 107CKE035M |
|---|---|---|---|
| 供应商 |
Element14 HK
英国仓
|
供应商型号 | 2841809 |
| 类型 | 铝电容 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

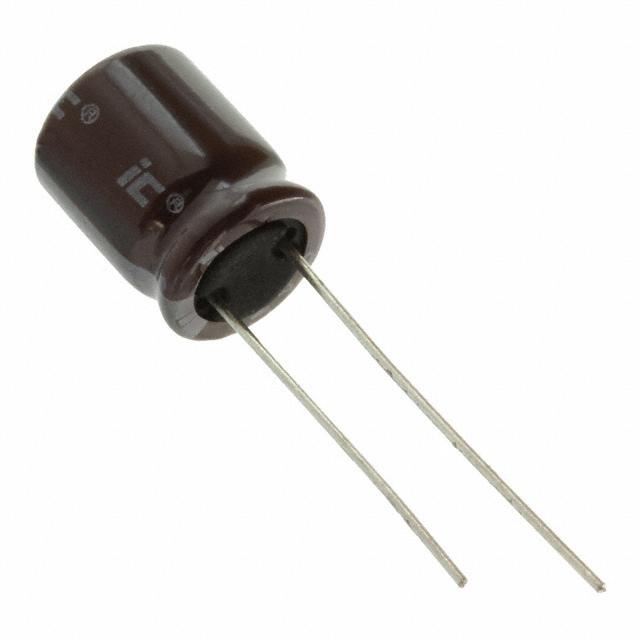

| 产品描述 | CAP ALUM 100UF 20% 35V RADIAL | ||
| 规格参数 | 数值 |
|---|---|
| Capacitance | 100µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | 1.989 Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170mA @ 120Hz |
| Ripple Current @ High Frequency | 280.5mA @ 100kHz |
| Impedance | |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
