| 原厂 | TE Connectivity | 制造商型号 | 1-1337418-0 |
|---|---|---|---|
| 供应商 |
Element14 HK
英国仓
|
供应商型号 | 1205976 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

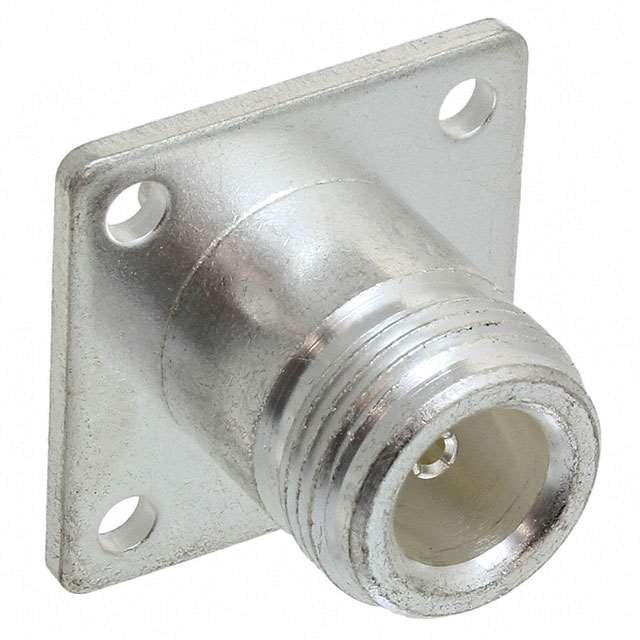

| 产品描述 | CONN N JACK STR 50 OHM SOLDER | ||
| 规格参数 | 数值 |
|---|---|
| Series | Greenpar |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Shield Termination | Solder |
| Impedance | 50 Ohm |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Cable Group | - |
| Fastening Type | Threaded |
| Frequency - Max | 11GHz |
| Number of Ports | 1 |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Includes | - |
| Body Material | Brass |
| Body Finish | Silver |
| Center Contact Plating | Silver |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Material | Brass |
| Voltage Rating | 1000V |
| Mating Cycles | 500 |
| Insertion Loss | - |
