| 原厂 | Amphenol | 制造商型号 | 71991-308LF |
|---|---|---|---|
| 供应商 | Hong Tech | 供应商型号 | 71991-308LF |
| 类型 | 板对板连接器-插座母插口 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

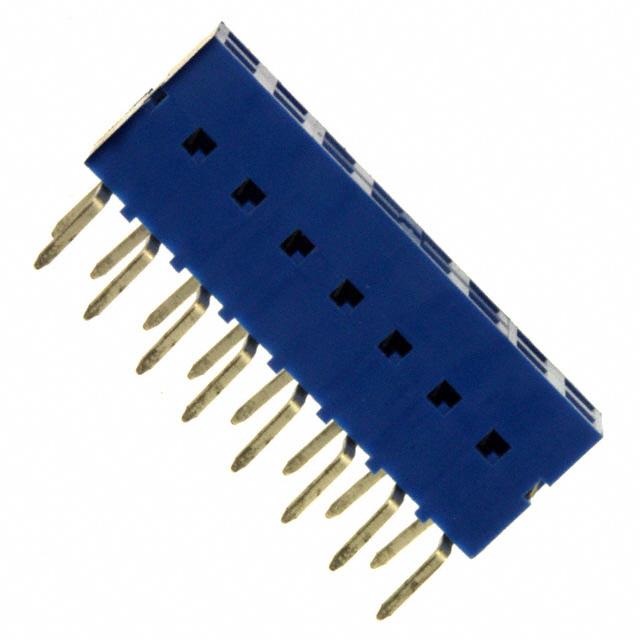

| 产品描述 | 16 Position Receptacle, Bottom or Top Entry Connector Gold 0.100" (2.54mm) Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Height Stacking (Mating) | - |
| Height Above Board | 0.275" (6.99mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Finish Thickness | 30µin (0.76µm) |
| Features | - |
| Color | Blue |
