| 原厂 | Amphenol | 制造商型号 | 20020316-H051B01LF |
|---|---|---|---|
| 供应商 | Hong Tech | 供应商型号 | 20020316-H051B01LF |
| 类型 | 端子-线对板 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

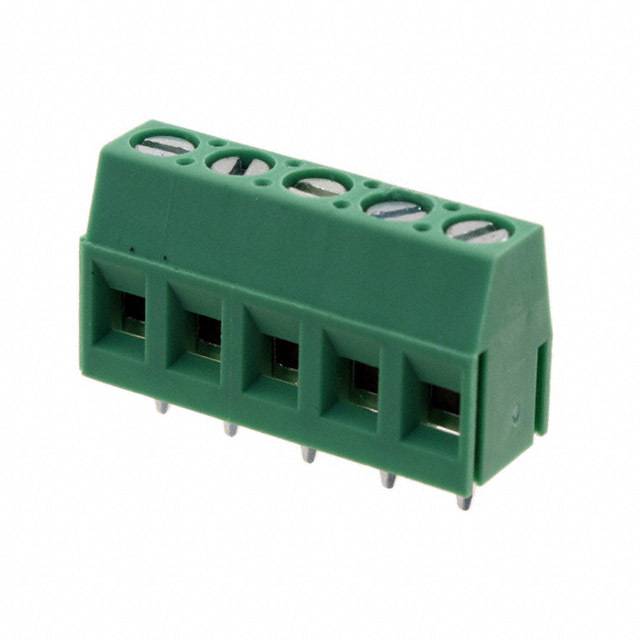

| 产品描述 | 5 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Number of Levels | 1 |
| Positions Per Level | 5 |
| Pitch | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board |
| Current | 16A |
| Voltage | 300V |
| Wire Gauge | 12-28 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) |
| Color | Green |
| Operating Temperature | -40°C ~ 115°C |
| Housing Material | Thermoplastic |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Screw Thread | M3 |
