| 原厂 | TE Connectivity | 制造商型号 | RJ11-2L-B |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | AMP1-1319433 |
| 类型 | 模块化连接器-插孔 | 批号 | -- |
| 包装数 | 30 | 包装 | -- |

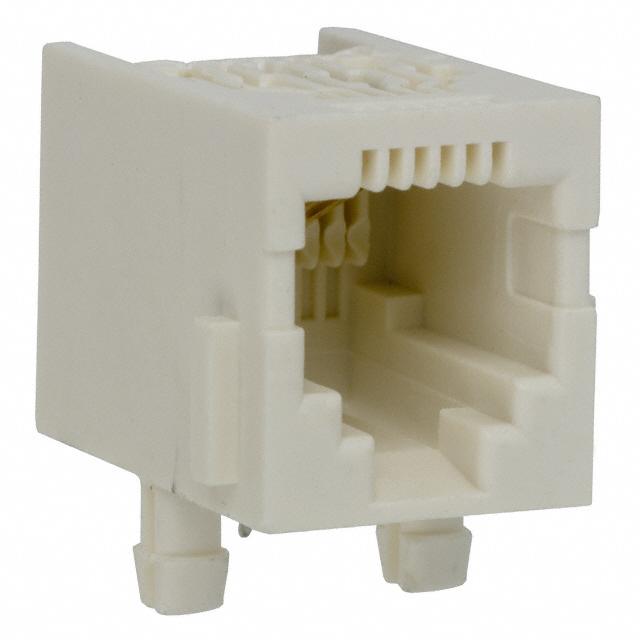

| 产品描述 | Jack Modular Connector 6p2c (RJ11) 90° Angle (Right) Unshielded | ||
| 规格参数 | 数值 |
|---|---|
| Connector Type | Jack |
| Number of Positions/Contacts | 6p2c (RJ11) |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Shielding | Unshielded |
| Ratings | - |
| Features | Board Lock, Filter, Panel Stops |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50µin (1.27µm) |
| Housing Material | Polyester, Glass Filled |
| Operating Temperature | - |
