| 原厂 | Molex | 制造商型号 | 0734153310 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | MOLE-1097362 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 3750 | 包装 | -- |

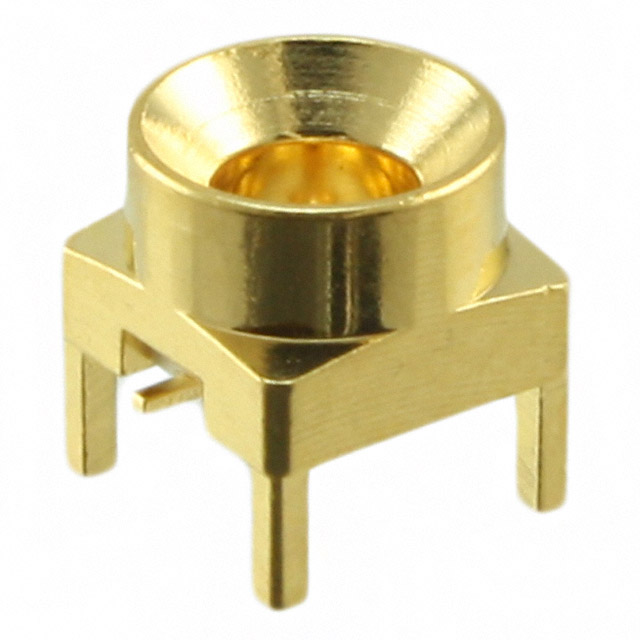

| 产品描述 | CONN SMP PLUG STR 50 OHM SMD | ||
| 规格参数 | 数值 |
|---|---|
| Series | 73415 |
| Connector Style | SMP |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Mounting Feature | - |
| Cable Group | - |
| Fastening Type | Snap-On |
| Frequency - Max | 40GHz |
| Number of Ports | 1 |
| Features | Limited Detent |
| Housing Color | Gold |
| Ingress Protection | - |
| Includes | - |
| Body Material | Brass |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Dielectric Material | - |
| Operating Temperature | -65°C ~ 155°C |
| Center Contact Material | Brass |
| Voltage Rating | 335V |
| Mating Cycles | 500 |
| Insertion Loss | - |
