| 原厂 | TE Connectivity | 制造商型号 | 381A302-71/86-0 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | LITT-0158153 |
| 类型 | 套管/帽盖 | 批号 | -- |
| 包装数 | 32 | 包装 | -- |

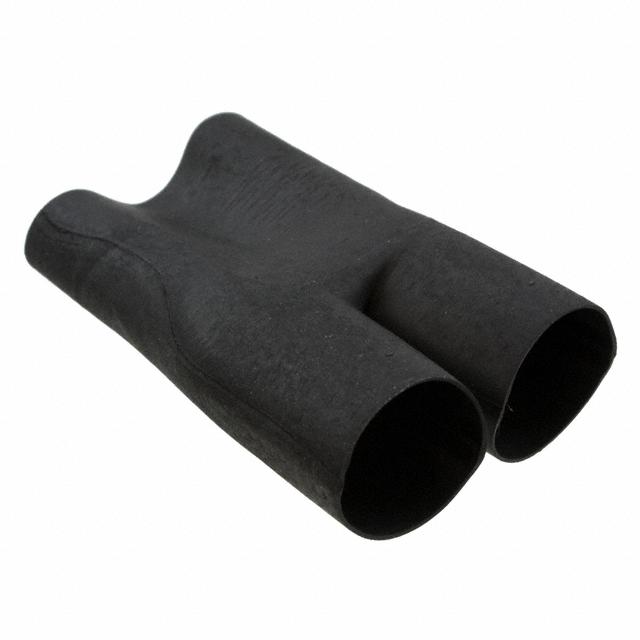

| 产品描述 | Heat Shrink Boot, Transition - Breakout, 2:1 (Y) Black 2 | ||
| 规格参数 | 数值 |
|---|---|
| Type | Boot, Transition - Breakout, 2:1 (Y) |
| Shell Size - Insert | 2 |
| Features | Adhesive Coating |
| Color | Black |
| Material | Polyolefin (PO), Flexible |
| Large Diameter Supplied | 1.350" (34.3mm) |
| Large Diameter Recovered | 0.448" (11.4mm) |
| Small Diameter Supplied | 0.900" (22.9mm) |
| Small Diameter Recovered | 0.450" (11.4mm) |
| Large Recovered Length | 1.620" (41.1mm) |
| Small Recovered Length | 1.620" (41.1mm) |
| Total Length Supplied | - |
| Total Length Recovered | - |
