| 原厂 | Phoenix Contact | 制造商型号 | 1701540 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | PENX-0243780 |
| 类型 | 端子-面板安装 | 批号 | -- |
| 包装数 | 10 | 包装 | -- |

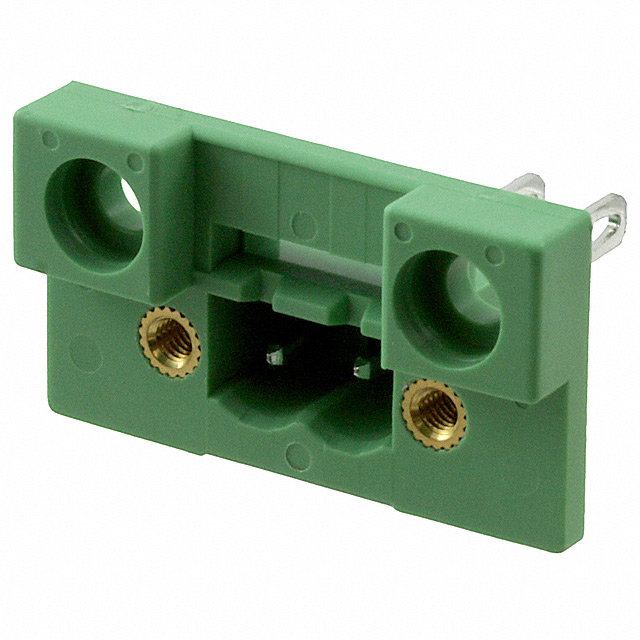

| 产品描述 | TERM BLK HEADER 3POS GREEN | ||
| 规格参数 | 数值 |
|---|---|
| Series | COMBICON DFK-PC |
| Front Panel Wire Connection | Header, Male Pins |
| Rear Panel Wire Connection | PCB Pins - Right Angle |
| Width | 2.592" (65.84mm) |
| Panel Thickness | 0.039 ~ 0.118" (1.0 ~ 3.0mm) |
| Positions Per Level | 3 |
| Panel Mount Type | 2 Piece, Snap Lock - Front Flange |
| Pitch | 0.400" (10.16mm) |
| Voltage - UL | 300V |
| Current - UL | 66A |
| Wire Gauge | - |
| Color | Green |
| Features | Threaded Mating Lock, Shield Connection Front Side |
| Number of Levels | 1 |
