| 原厂 | Preci-Dip | 制造商型号 | 852-10-016-20-002101 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | PREC-0063199 |
| 类型 | 矩形连接器-针座公插针 | 批号 | -- |
| 包装数 | 864 | 包装 | -- |

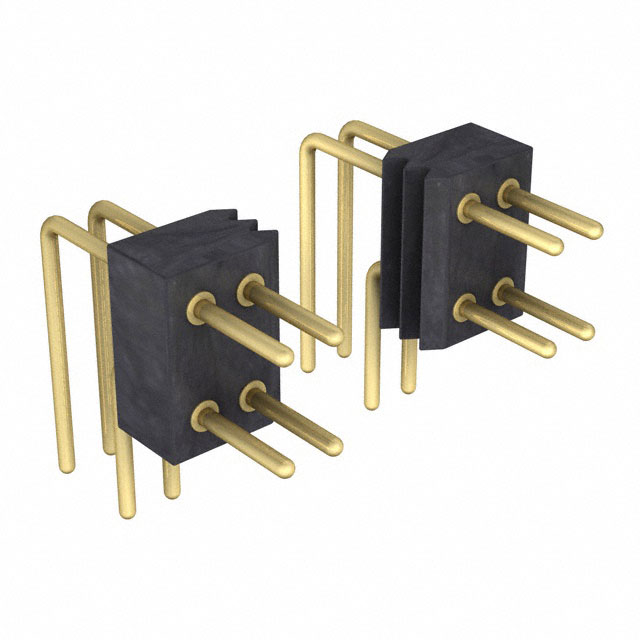

| 产品描述 | CONN HDR 16POS 1.27MM T/H R/A | ||
| 规格参数 | 数值 |
|---|---|
| Series | 852 |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.118" (3.00mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.174" (4.42mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | 1A |
| Voltage Rating | 150VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Applications | - |
