| 原厂 | OSRAM Opto Semiconductors Inc. | 制造商型号 | GW P7STA2.PM-QTRP-40S5-1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | OSRA-0163541 |
| 类型 | LED白色照明 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

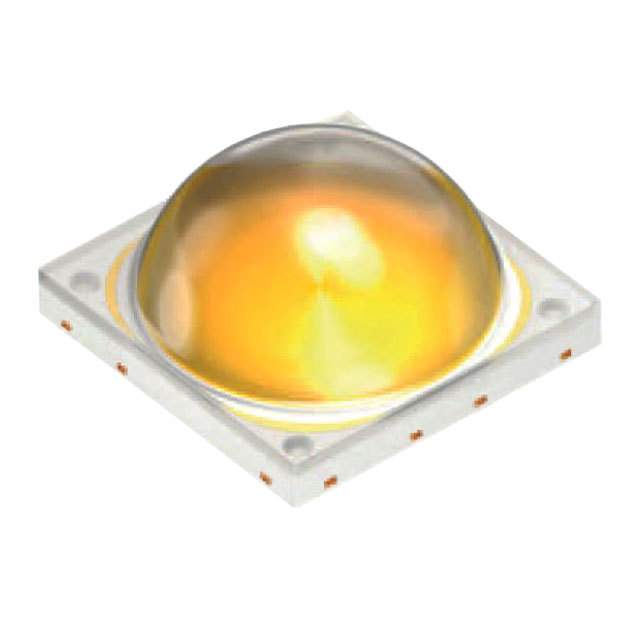

| 产品描述 | LED Lighting DURIS® P 10 White, Neutral 4000K 5.6V 1.4A 120° 2-SMD, No Lead, Exposed Pad | ||
| 规格参数 | 数值 |
|---|---|
| Color | White, Neutral |
| CCT (K) | 4000K |
| Flux @ 85°C, Current - Test | 1079 lm (970 lm ~ 1210 lm) |
| Flux @ 25°C, Current - Test | - |
| Current - Test | 1.4A |
| Voltage - Forward (Vf) (Typ) | 5.6V |
| Lumens/Watt @ Current - Test | 138 lm/W |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 2A |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead, Exposed Pad |
| Thermal Resistance of Package | - |
