| 原厂 | Bourns | 制造商型号 | SF-2410SP200W-2 |
|---|---|---|---|
| 供应商 |
Element14 CN
英国仓
|
供应商型号 | 2895601 |
| 类型 | 保险丝 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

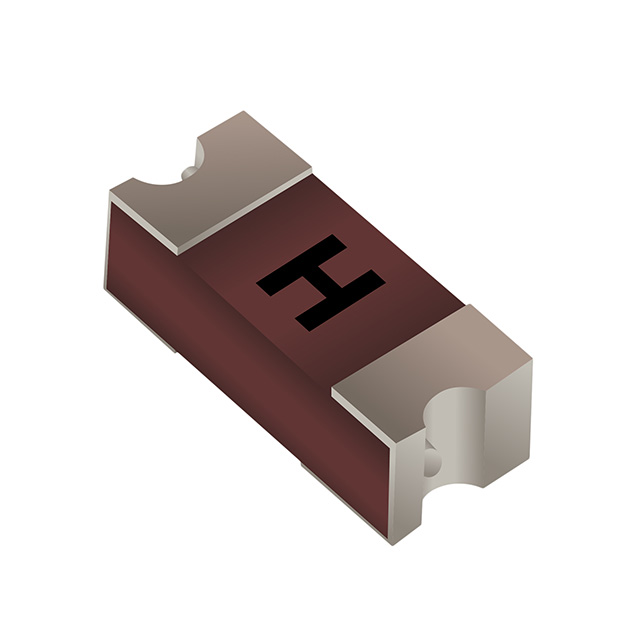

| 产品描述 | 2410 SMD TIME-LAG WIRE-IN-AIR 2. | ||
| 规格参数 | 数值 |
|---|---|
| Series | SinglFuse™ SF-2410SPxxxW |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating | 2A |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 125V |
| Response Time | Slow |
| Package / Case | 2410 (6125 Metric) |
| Mounting Type | Surface Mount |
| Breaking Capacity @ Rated Voltage | 100A AC, 50A DC |
| Melting I²t | 3 |
| Approvals | UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm) |
| DC Cold Resistance | 0.038 Ohms |
