| 原厂 | TE Connectivity | 制造商型号 | PS0S0SH30 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | AMP1-1419463 |
| 类型 | 电源连接器-交流电源连接器 | 批号 | -- |
| 包装数 | 80 | 包装 | -- |

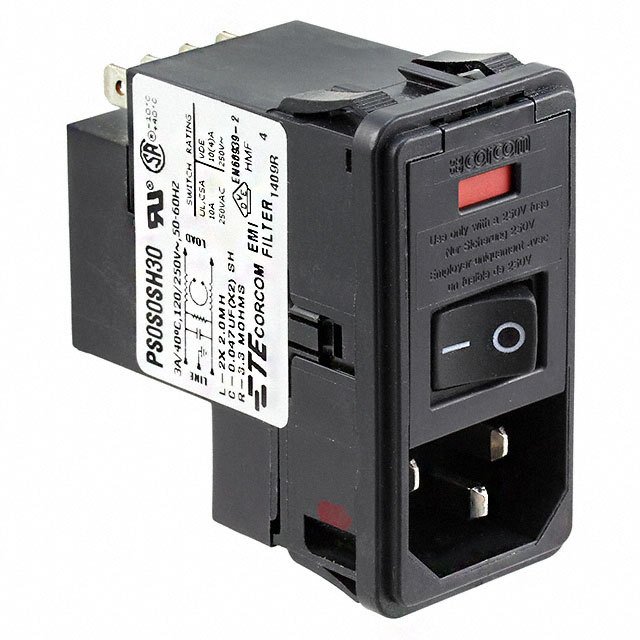

| 产品描述 | Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current - IEC | 3A |
| Voltage - IEC | 120VAC |
| Current - UL | 3A |
| Voltage - UL | 250VAC |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse | Yes |
| Number of Positions | 3 |
| Mounting Type | Panel Mount, Snap-In |
| Termination | Quick Connect - 0.187" (4.7mm) |
| Switch Features | Switch On-Off |
| Features | Conversion Clip |
| Fuse Holder, Drawer | Fuse Holder |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness | 0.031" ~ 0.114" (0.79mm ~ 2.90mm) |
| Material Flammability Rating | - |
| Ingress Protection | - |
| Approvals | CSA, UL, VDE |
