| 原厂 | Weidmuller | 制造商型号 | 8921110000 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | WEMU-0079692 |
| 类型 | 功率继电器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

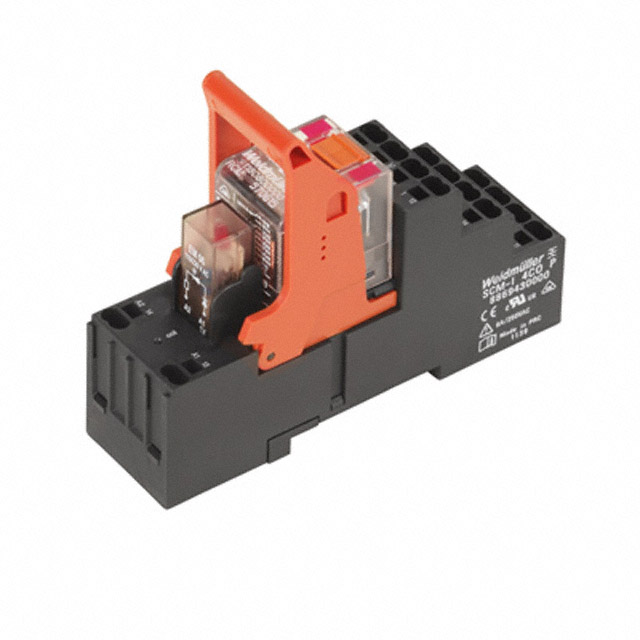

| 产品描述 | RELAY GEN PURPOSE DPDT 12A 230V | ||
| 规格参数 | 数值 |
|---|---|
| Series | RCM KITP |
| Relay Type | General Purpose with Socket |
| Coil Type | Non Latching |
| Coil Current | 4.3mA |
| Coil Voltage | 230VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 12A |
| Switching Voltage | 250VAC - Max |
| Turn On Voltage (Max) | 184 VAC |
| Turn Off Voltage (Min) | 69 VAC |
| Operate Time | 15ms |
| Release Time | 10ms |
| Features | LED Indicator |
| Mounting Type | DIN Rail |
| Termination Style | Screwless Clamp |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Coil Power | 1 VA |
