| 原厂 | Huber & Suhner | 制造商型号 | 34_BNC-SMA-50-2/1--_UE |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | HUSU-0006302 |
| 类型 | 同轴连接器-适配器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

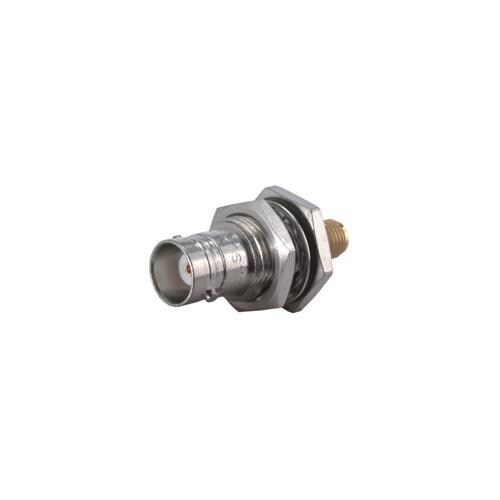

| 产品描述 | RF Adapters - Between Series | ||
| 规格参数 | 数值 |
|---|---|
| Side 1 RF Series | BNC |
| Side 1 Gender | Jack (Female) |
| Side 1 Polarity | Normal |
| Side 2 RF Series | SMA |
| Side 2 Gender | Jack (Female) |
| Side 2 Polarity | Normal |
| Impedance | 50 Ohms |
| Frequency Range | DC to 4 GHz |
| Body Material | Brass |
| Contact Plating | Gold |
| Orientation | Straight |
| Contact Material | Beryllium Copper |
| Mounting Style | Bulkhead |
| Maximum Frequency | 4 GHz |
| Factory Pack Quantity | 1 |
| Part # Aliases | 22651028 |
| Unit Weight | 0.638459 oz |
