| 原厂 | Orion Fans | 制造商型号 | OA938AP-11/22-1WB |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ORNF-0005453 |
| 类型 | AC风扇 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

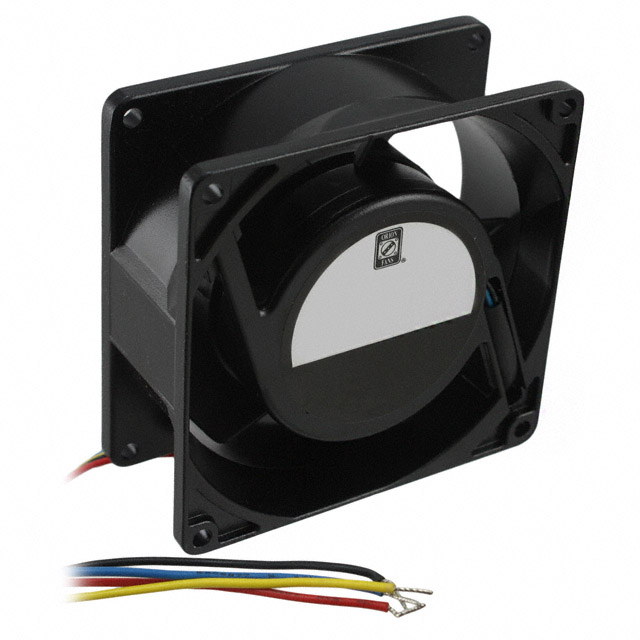

| 产品描述 | FAN AXIAL 92X38.5MM 115/230VAC | ||
| 规格参数 | 数值 |
|---|---|
| Series | OA938 |
| Voltage - Rated | 115/230VAC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 38.50mm |
| Air Flow | 50.0 CFM (1.40m³/min) |
| Static Pressure | 0.220 in H2O (54.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage |
| Noise | 32.0 dB |
| Power (Watts) | 9.00W |
| RPM | 3100 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Approvals | cURus, TUV |
| Weight | - |
| Current Rating | - |
| Voltage Range | 80 ~ 260VAC |
| Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
