| 原厂 | EATON | 制造商型号 | HB1030-2R5106-R |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | COOP-0139685 |
| 类型 | 超级电容 | 批号 | -- |
| 包装数 | 10 | 包装 | -- |

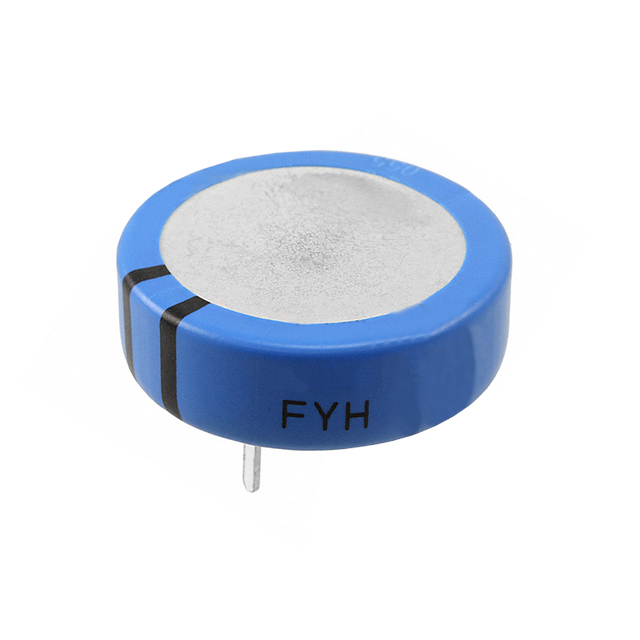

| 产品描述 | CAP 10F -10% +30% 2.5V T/H | ||
| 规格参数 | 数值 |
|---|---|
| Series | PowerStor HB |
| Capacitance | 10F |
| Tolerance | -10%, +30% |
| Voltage - Rated | 2.5V |
| ESR (Equivalent Series Resistance) | 60 mOhm @ 100Hz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Operating Temperature | -25°C ~ 70°C |
