| 原厂 | TE Connectivity | 制造商型号 | PD5A235 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | AMP1-1098264 |
| 类型 | 继电器-未分类 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

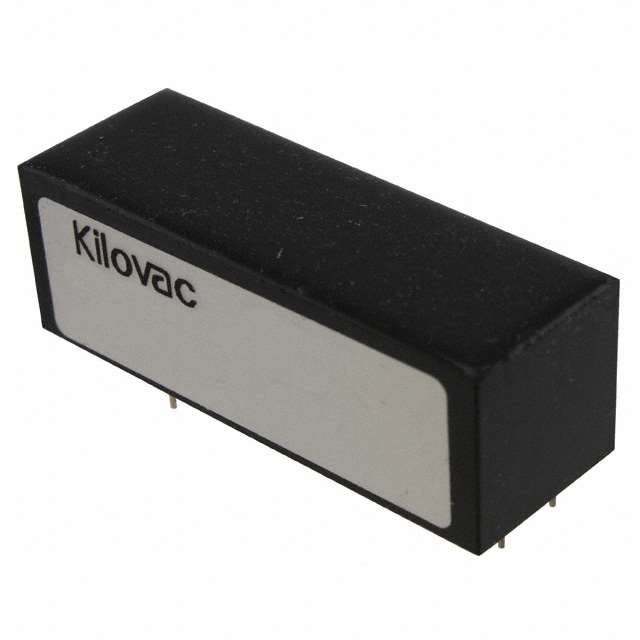

| 产品描述 | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | - |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5A |
| Switching Voltage | 1800VDC - Max |
| Turn On Voltage (Max) | 8 VDC |
| Turn Off Voltage (Min) | 0.5 VDC |
| Operate Time | 10ms |
| Release Time | 10ms |
| Features | Sealed - Vacuum |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | - |
| Coil Power | - |
| Coil Resistance | 70 Ohms |
| Operating Temperature | -40°C ~ 85°C |
