| 原厂 | TDK | 制造商型号 | B82726S2203A20 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | EPCO-0065949 |
| 类型 | 共模扼流圈 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

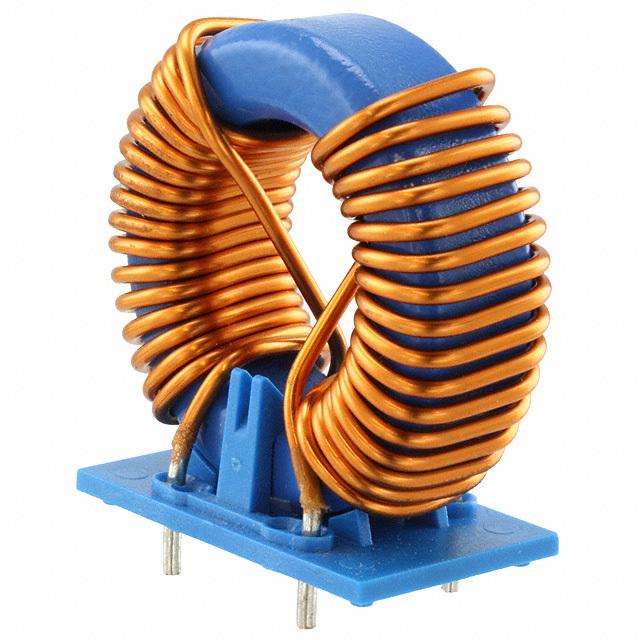

| 产品描述 | 1.6mH @ 10kHz 2 Line Common Mode Choke Through Hole 20A DCR 4.5 mOhm (Typ) | ||
| 规格参数 | 数值 |
|---|---|
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 1.6mH @ 10kHz |
| Current Rating (Max) | 20A |
| DC Resistance (DCR) (Max) | 4.5 mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approvals | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.969" L x 0.906" W (50.00mm x 23.00mm) |
| Height (Max) | 1.929" (49.00mm) |
| Package / Case | Vertical, 4 PC Pin |
