| 原厂 | Amphenol | 制造商型号 | 000-36775 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-0454818 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 100 | 包装 | -- |

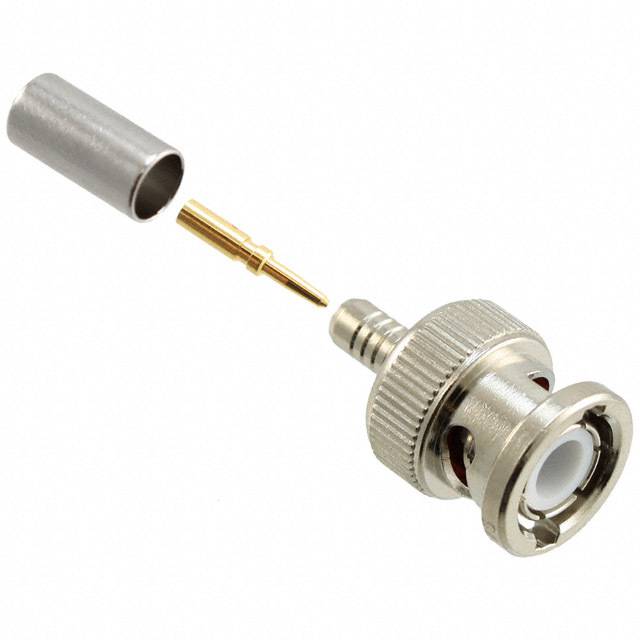

| 产品描述 | BNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp or Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | BNC |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp or Solder |
| Shield Termination | Crimp |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4GHz |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | 500V |
| Operating Temperature | -65°C ~ 165°C |
