| 原厂 | ECS INC | 制造商型号 | ECS-3961-200-AU-TR |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ECS1-0004979 |
| 类型 | 振荡器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

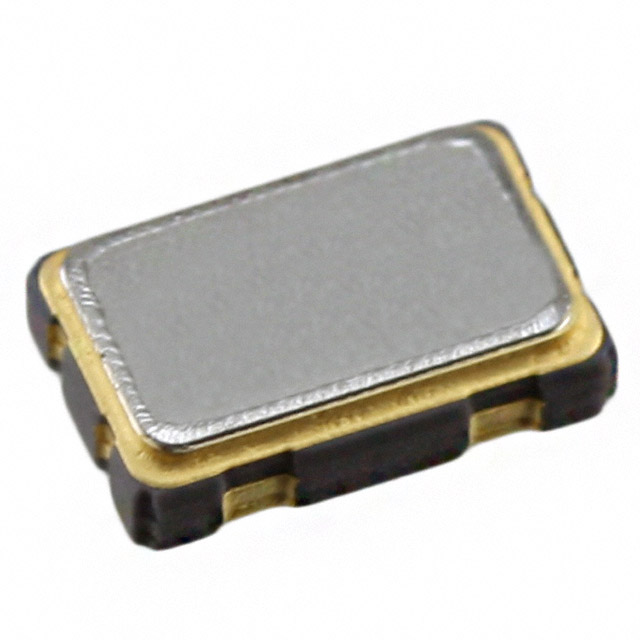

| 产品描述 | OSC XO 20.000MHZ HCMOS SMD | ||
| 规格参数 | 数值 |
|---|---|
| Series | ECS-3961 |
| Type | XO (Standard) |
| Frequency | 20MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 5V |
| Frequency Stability | ±100ppm |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply (Max) | 20mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
| Current - Supply (Disable) (Max) | - |
