| 原厂 | Amphenol | 制造商型号 | 031-71052-1010 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-3657340 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 15 | 包装 | -- |

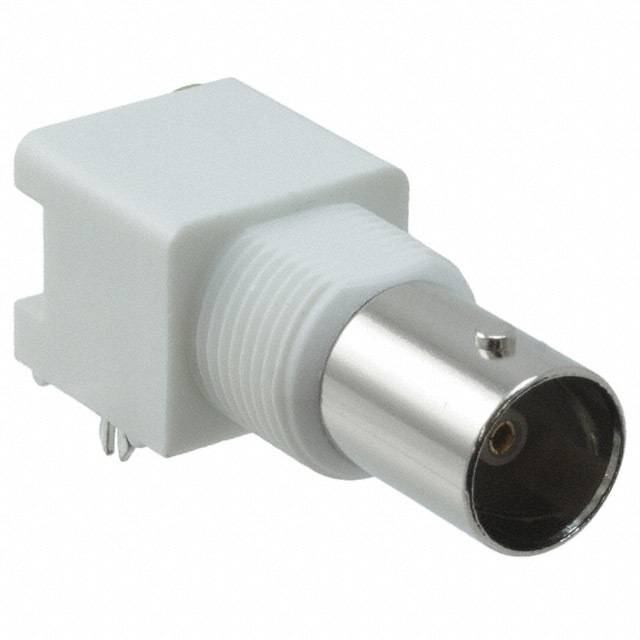

| 产品描述 | BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Bulkhead; Through Hole, Right Angle Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 75 Ohm |
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 1GHz |
| Features | Board Lock, Isolated |
| Housing Color | Silver, White |
| Ingress Protection | - |
| Body Material | Zinc Die Cast |
| Body Finish | Nickel |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Dielectric Material | Polypropylene (PP) |
| Voltage Rating | 500V |
| Operating Temperature | -55°C ~ 85°C |
