| 原厂 | Amphenol | 制造商型号 | 132123RP |
|---|---|---|---|
| 供应商 |
Element14 CN
上海仓
|
供应商型号 | 3757611 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

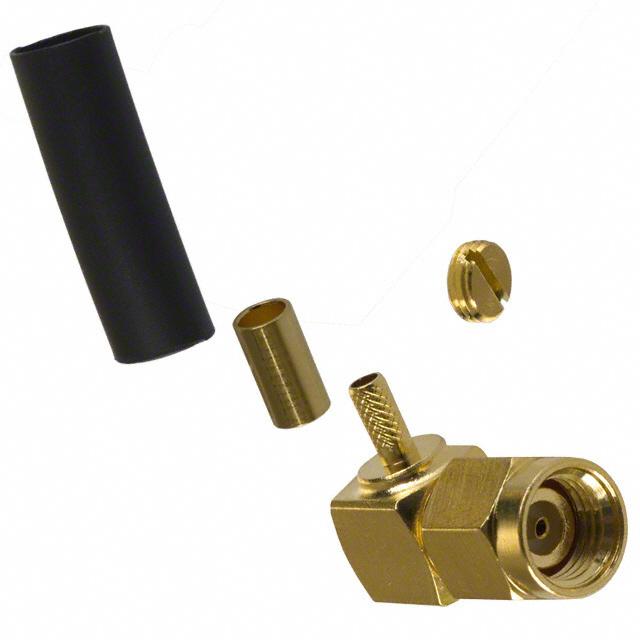

| 产品描述 | RP-SMA Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | RP-SMA |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Fastening Type | Threaded |
| Frequency - Max | 12.4GHz |
| Features | Heat Shrink Tubing |
| Housing Color | Gold |
| Ingress Protection | Weatherproof |
| Body Material | Brass |
| Body Finish | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | 375V |
| Operating Temperature | -65°C ~ 165°C |
