| 原厂 | OSRAM Opto Semiconductors Inc. | 制造商型号 | LD CQDP-2U3U-W5-1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | OSRA-0013727 |
| 类型 | LED彩色照明 | 批号 | -- |
| 包装数 | 10 | 包装 | -- |

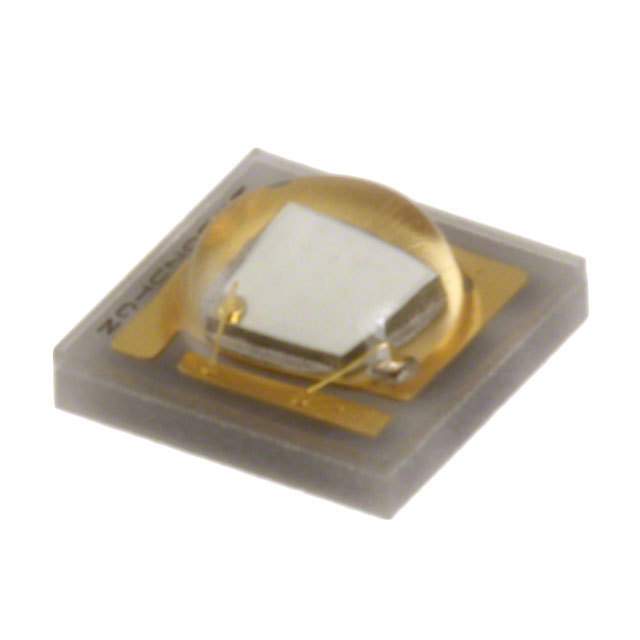

| 产品描述 | LED Lighting Color OSLON SSL® 150 Blue 450nm (439nm ~ 461nm) 2-SMD, No Lead, Exposed Pad | ||
| 规格参数 | 数值 |
|---|---|
| Color | Blue |
| Wavelength | 450nm (439nm ~ 461nm) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Lumens/Watt @ Current - Test | - |
| Current - Max | 1A |
| Flux @ Current/Temperature - Test | 565mW (500mW ~ 630mW) |
| Temperature - Test | 25°C |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead, Exposed Pad |
| Thermal Resistance of Package | 9.6°C/W |
