| 原厂 | TE Connectivity | 制造商型号 | 1058990-1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0565293 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

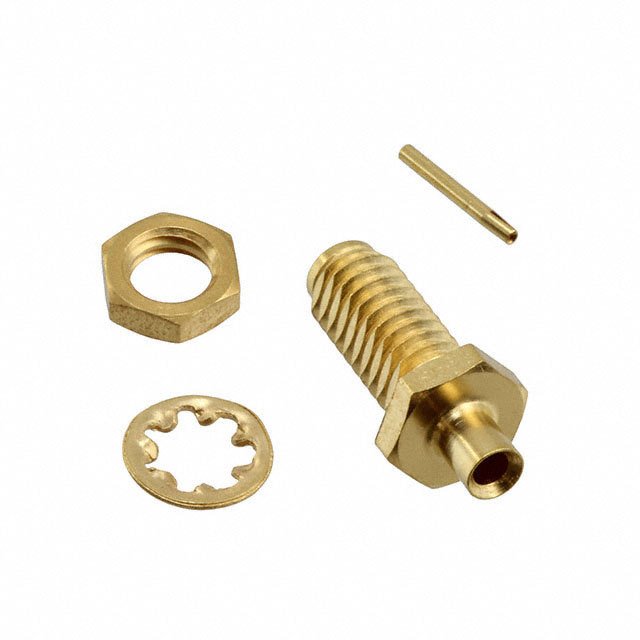

| 产品描述 | OSMM Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | OSMM |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 50 Ohm |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Cable Group | 0.047" Semi Rigid |
| Fastening Type | Threaded |
| Frequency - Max | 45GHz |
| Features | - |
| Housing Color | Gold |
| Ingress Protection | - |
| Body Material | Stainless Steel |
| Body Finish | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | - |
| Operating Temperature | - |
