| 原厂 | Amphenol | 制造商型号 | 112989 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-0059054 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 100 | 包装 | -- |

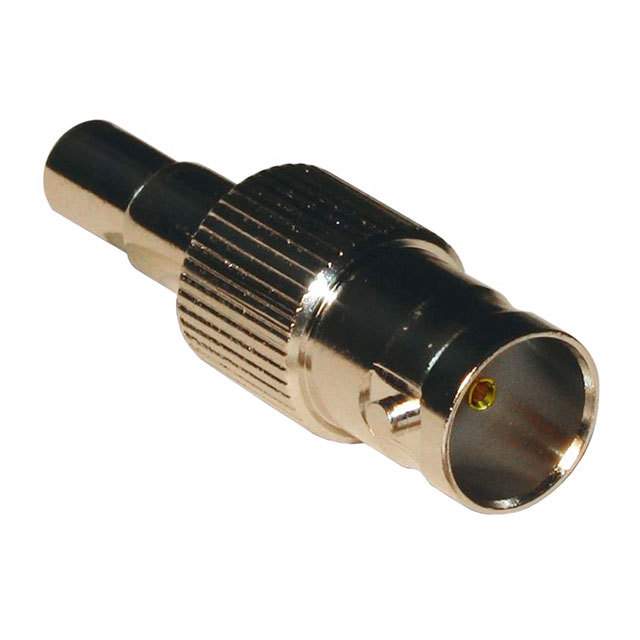

| 产品描述 | BNC Connector Jack, Female Socket 75 Ohm Free Hanging (In-Line) Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-122, 180, 180A, 180B, 195, Belden 1855, 1865A |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 3GHz |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | 500V |
| Operating Temperature | -65°C ~ 165°C |
