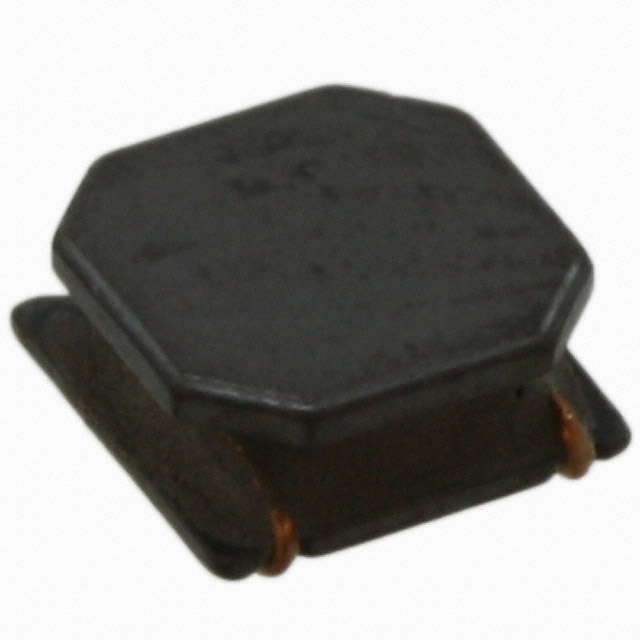

| 原厂 | Vishay | 制造商型号 | IFSC1515AHER3R3M01 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | VISH-0652094 |
| 类型 | 固定值电感器 | 批号 | -- |
| 包装数 | 5 | 包装 | -- |
| 产品描述 | FIXED IND 3.3UH 2.7A 56 MOHM SMD | ||
| 规格参数 | 数值 |
|---|---|
| Type | |
| Material - Core | |
| Inductance | 3.3µH |
| Tolerance | ±20% |
| Current Rating | 2.7A |
| Current - Saturation | 2.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 56 mOhm Max |
| Q @ Freq | |
| Frequency - Self Resonant | |
| Ratings | |
| Operating Temperature | -55°C ~ 125°C |
| Frequency - Test | 100kHz |
| Features | |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
