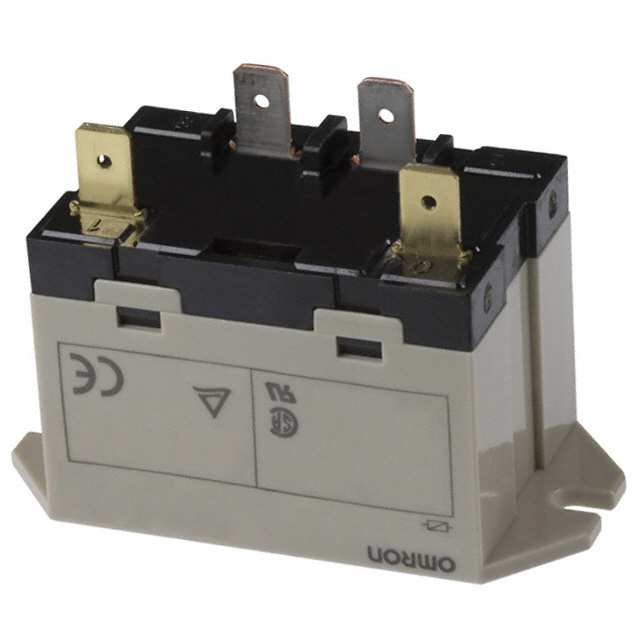

| 原厂 | OMRON | 制造商型号 | G7L-1A-TUB-J-CB-AC200/240 |
|---|---|---|---|
| 供应商 | Master | 供应商型号 | G7L-1A-TUB-J-CB-AC200/240 |
| 类型 | 功率继电器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |
| 产品描述 | RELAY GEN PURPOSE SPST 30A 240V | ||
| 规格参数 | 数值 |
|---|---|
| Series | G7L |
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 10.2mA |
| Coil Voltage | 240VAC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30A |
| Switching Voltage | 250VAC - Max |
| Turn On Voltage (Max) | 150 VAC |
| Turn Off Voltage (Min) | 36 VAC |
| Operate Time | 30ms |
| Release Time | 30ms |
| Features | Insulation - Class B, Test Button |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Coil Power | 2.5 VA |
| Coil Resistance | 21 kOhms |
