| 原厂 | Olimex LTD | 制造商型号 | A20-OLINUXINO-LIME |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | OLIM-0000527 |
| 类型 | 单板计算机 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

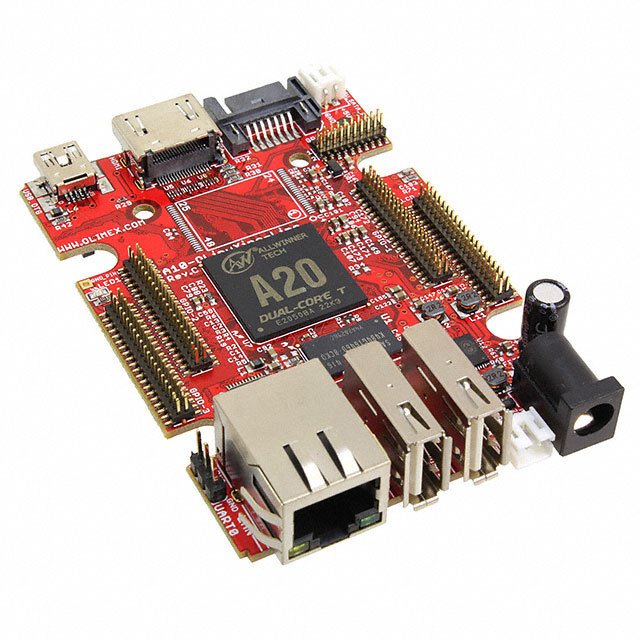

| 产品描述 | BOARD ARM LINUX A20 DUAL CORE A7 | ||
| 规格参数 | 数值 |
|---|---|
| Core Processor | Allwinner ARM® Cortex®-A7 |
| Speed | 1.0GHz |
| Number of Cores | 2 |
| Power (Watts) | - |
| Cooling Type | - |
| Size / Dimension | 2.99" x 2.32" (76mm x 59mm) |
| Form Factor | - |
| Expansion Site/Bus | - |
| RAM Capacity/Installed | 512MB/512MB |
| Storage Interface | microSD |
| Video Outputs | HDMI, LCD |
| Ethernet | 100 Mbps |
| USB | USB 2.0 (3) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | 160 |
| Analog Input:Output | - |
| Watchdog Timer | - |
| Operating Temperature | - |
