| 原厂 | Advanced Thermal Solutions | 制造商型号 | ATS-PCBT1084 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ADTM-0002237 |
| 类型 | 散热器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

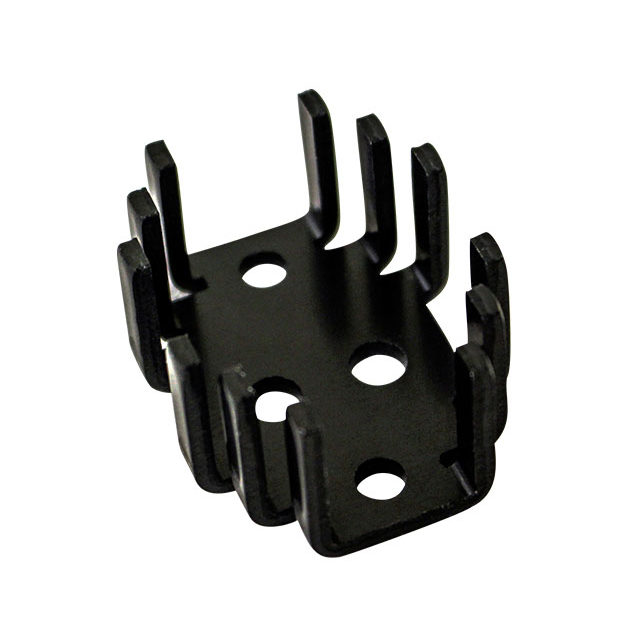

| 产品描述 | HEATSINK TO-3 BLACK | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Type | Board Level |
| Package Cooled | TO-3 |
| Attachment Method | Bolt On |
| Shape | Rectangular, Fins |
| Length | 1.630" (41.40mm) |
| Width | 1.291" (32.80mm) |
| Diameter | - |
| Height Off Base (Height of Fin) | 0.748" (19.00mm) |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 4.40°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 13.50°C/W |
| Material | Aluminum |
| Material Finish | Black Anodized |
