| 原厂 | Amphenol | 制造商型号 | 3285-6001 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-0242652 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

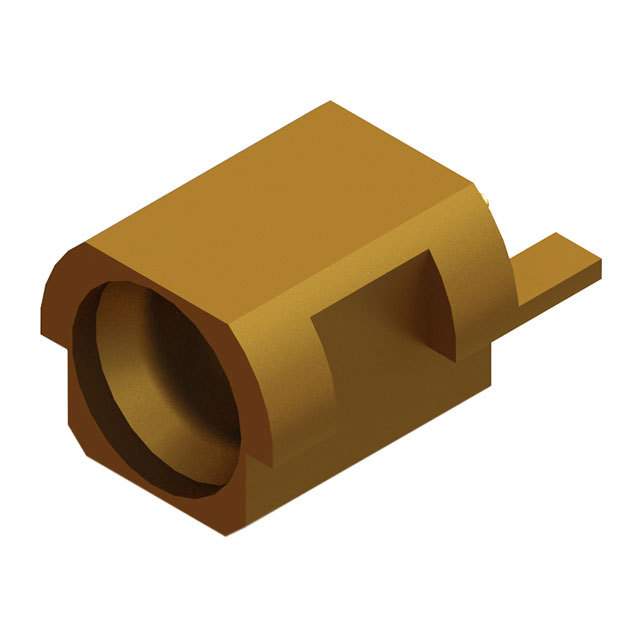

| 产品描述 | SMPM Connector Plug, Male Pin 50 Ohm Board Edge, Cutout; Surface Mount Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | SMPM |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 50 Ohm |
| Mounting Type | Board Edge, Cutout; Surface Mount |
| Cable Group | - |
| Fastening Type | Snap-On |
| Frequency - Max | 40GHz |
| Features | Full Detent |
| Housing Color | Gold |
| Ingress Protection | - |
| Body Material | Stainless Steel |
| Body Finish | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 125°C |
