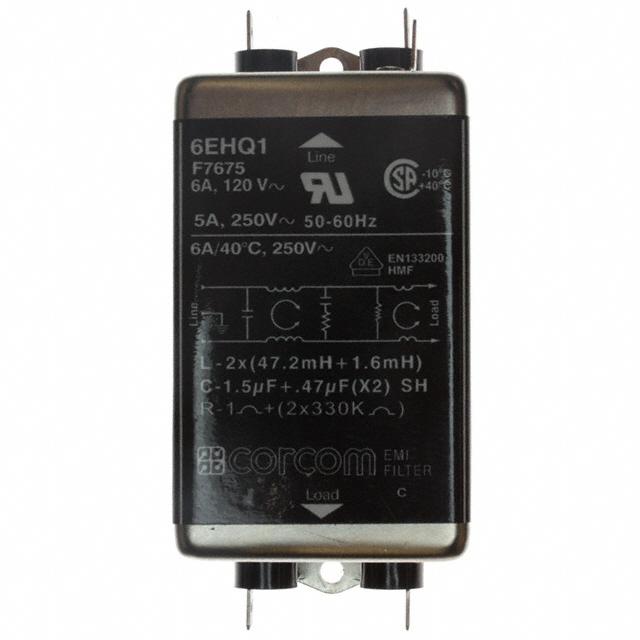

| 原厂 | TE Connectivity | 制造商型号 | 6EHQ1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0000503 |
| 类型 | 电力线滤波器模块 | 批号 | -- |
| 包装数 | 2 | 包装 | -- |
| 产品描述 | Power Entry Connector Panel Mount, Flange | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | - |
| Connector Type | - |
| Current - IEC | 6A |
| Voltage - IEC | 120/250VAC |
| Current - UL | 6A |
| Voltage - UL | 250VAC |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse | - |
| Number of Positions | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Quick Connect - 0.250" (6.3mm) |
| Switch Features | - |
| Features | - |
| Fuse Holder, Drawer | - |
| Panel Cutout Dimensions | - |
| Panel Thickness | - |
| Material Flammability Rating | - |
| Ingress Protection | - |
| Approvals | CSA, UL, VDE |
