| 原厂 | TDK | 制造商型号 | B43505C9337M |
|---|---|---|---|
| 供应商 | RS | 供应商型号 | 496-1779 |
| 类型 | 铝电容 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

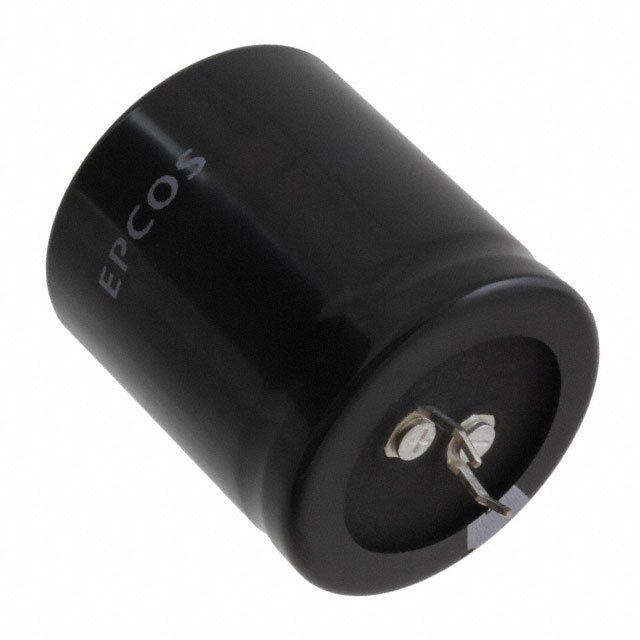

| 产品描述 | 330µF 400V Aluminum Capacitors Radial, Can - Snap-In 270 mOhm @ 100Hz 5000 Hrs @ 105°C | ||
| 规格参数 | 数值 |
|---|---|
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage Rating | 400V |
| ESR (Equivalent Series Resistance) | 270 mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Applications | General Purpose |
| Ripple Current | 1.7A @ 100Hz |
| Impedance | 330 mOhm |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
