| 原厂 | TE Connectivity | 制造商型号 | HFW1201D00 |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | HFW1201D00 |
| 类型 | 继电器-未分类 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

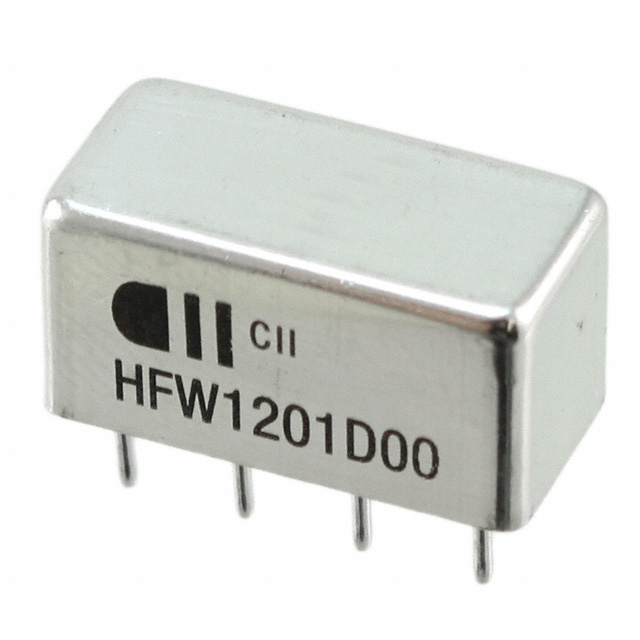

| 产品描述 | General Purpose Relay DPDT (2 Form C) Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 25.8mA |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2A |
| Switching Voltage | 28VDC - Nom |
| Turn On Voltage (Max) | 14 VDC |
| Turn Off Voltage (Min) | 1.5 VDC |
| Operate Time | - |
| Release Time | - |
| Features | - |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | - |
| Coil Power | - |
| Coil Resistance | 1.25 kOhms |
| Operating Temperature | -65°C ~ 125°C |
