| 原厂 | TE Connectivity | 制造商型号 | 1825219-4 |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | 1825219-4 |
| 类型 | 拨动开关 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

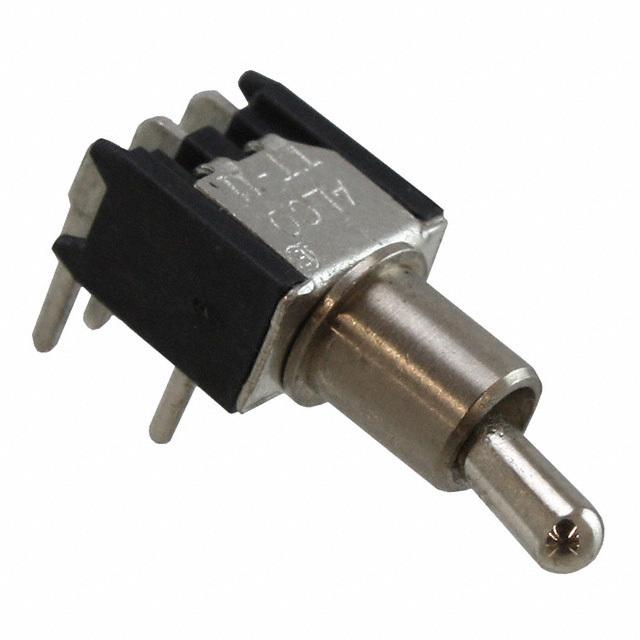

| 产品描述 | Toggle Switch SPDT Through Hole, Right Angle | ||
| 规格参数 | 数值 |
|---|---|
| Circuit | SPDT |
| Switch Function | On-On |
| Current Rating | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20V |
| Voltage Rating - DC | 20V |
| Actuator Type | Standard Round |
| Actuator Length | 5.61mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Panel Cutout Dimensions | - |
| Bushing Thread | Unthreaded |
| Ingress Protection | - |
| Features | Epoxy Sealed Terminals |
| Actuator Material | Brass, Nickel Plated |
| Electrical Life | 80,000 Cycles |
| Operating Temperature | -30°C ~ 85°C |
