| 原厂 | TE Connectivity | 制造商型号 | MRJE2604 |
|---|---|---|---|
| 供应商 |
Element14 CN
英国仓
|
供应商型号 | 3397735 |
| 类型 | 旋转开关 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

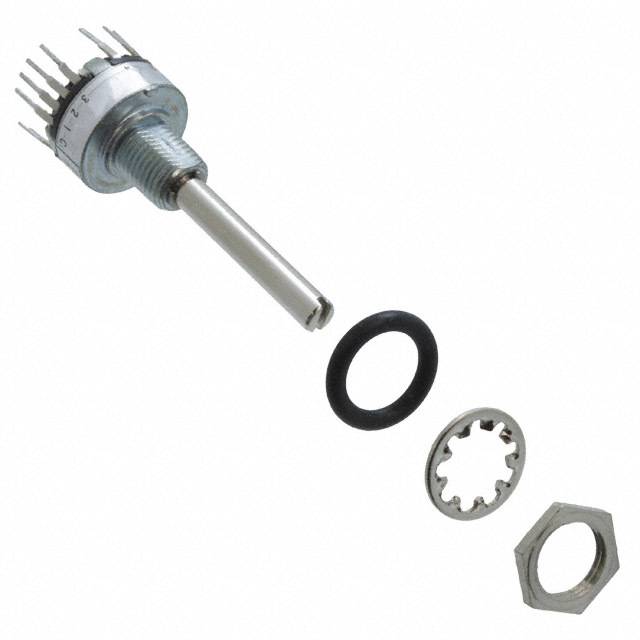

| 产品描述 | Rotary Switch 6 Position DP6T 0.4VA (AC/DC) 20VAC Panel Mount, Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Number of Positions | 6 |
| Index Stops | Fixed |
| Number of Decks | 1 |
| Number of Poles per Deck | 2 |
| Circuit per Deck | DP6T |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20V |
| Voltage Rating - DC | 20V |
| Actuator Type | Round (3.17mm Dia), Slotted |
| Actuator Length | 19.00mm |
| Angle of Throw | 30° |
| Contact Material | Nickel |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Depth Behind Panel | 8.13mm |
| Panel Cutout Dimensions | - |
| Operating Force, Torque | 14 in-oz |
