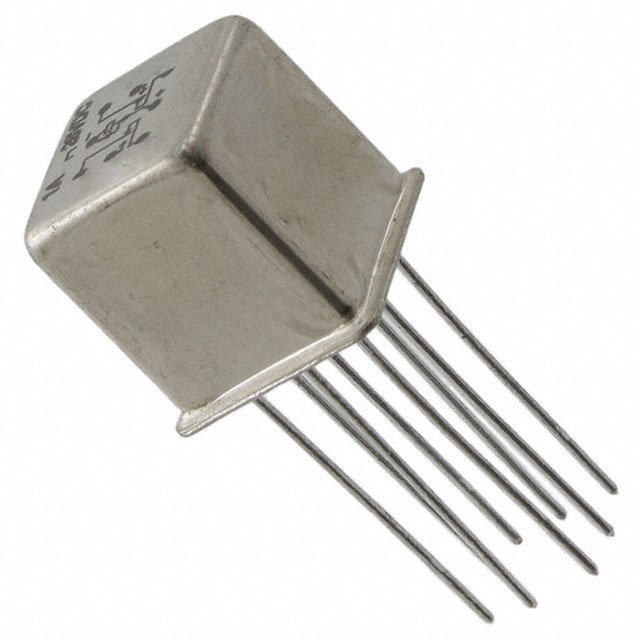

| 原厂 | TE Connectivity | 制造商型号 | JMGSCDD-26PW |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0506585 |
| 类型 | 继电器-未分类 | 批号 | -- |
| 包装数 | 2 | 包装 | -- |
| 产品描述 | General Purpose Relay DPDT (2 Form C) Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | - |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1A |
| Switching Voltage | 28VDC - Nom |
| Turn On Voltage (Max) | 15.2 VDC |
| Turn Off Voltage (Min) | 1.3 VDC |
| Operate Time | 4ms |
| Release Time | 7.5ms |
| Features | Sealed - Hermetically |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | - |
| Coil Power | 450 mW |
| Coil Resistance | 1.56 kOhms |
| Operating Temperature | -65°C ~ 125°C |
