| 原厂 | TE Connectivity | 制造商型号 | 5-448153-1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0225135 |
| 类型 | D-Sub连接器-连接器 | 批号 | -- |
| 包装数 | 800 | 包装 | -- |

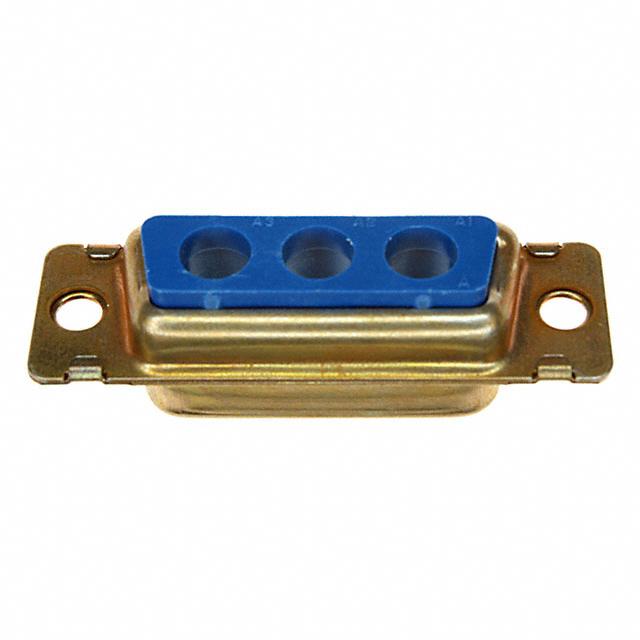

| 产品描述 | Plug for Male Contacts Housing D-Sub, Combo Connector 3 (Coax or Power) Position | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | D-Sub, Combo |
| Connector Type | Plug for Male Contacts |
| Number of Positions | 3 (Coax or Power) |
| Number of Rows | 1 |
| Shell Size, Connector Layout | 2 (DA, A) - 3W3 |
| Contact Type | Coax or Power |
| Mounting Type | Free Hanging (In-Line) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Features | - |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Shell Finish Thickness | 200µin (5.08µm) |
| Ingress Protection | - |
| Operating Temperature | - |
| Mating Cycles | - |
| Dielectric Material | Polyester |
| Color | Blue |
| Note | Contacts Not Provided |
