| 原厂 | CUI INC | 制造商型号 | RCJ-033 |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | RCJ-033 |
| 类型 | 电话连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

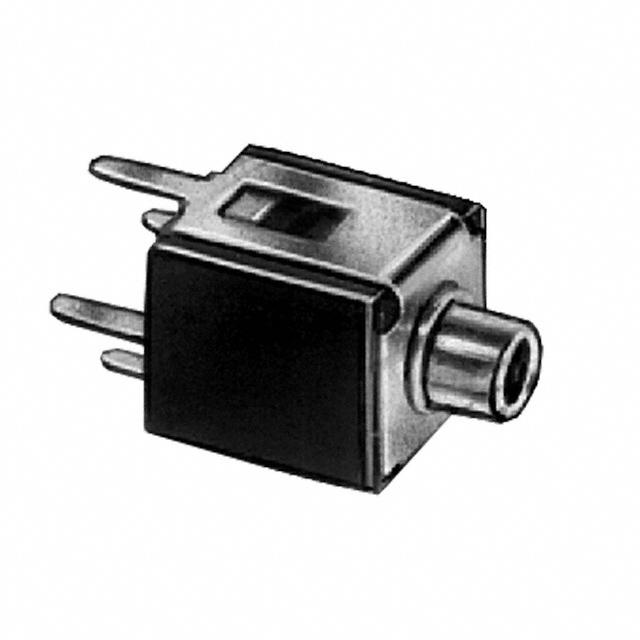

| 产品描述 | CONN RCA JACK MONO 3.2MM PNL MT | ||
| 规格参数 | 数值 |
|---|---|
| Series | RCJ |
| Connector Type | Phono (RCA) Jack |
| Gender | Female |
| Signal Lines | Mono |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Actual Diameter | 0.134" (3.40mm ID), 0.327" (8.30mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Grounding Tab, Thread Lock |
| Insulation Color | White |
| Voltage - Rated | - |
| Mating Length/Depth | - |
| Contact Material - Plating | Nickel |
| Body Material | Brass |
| Body Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Grounding Tab, 1 Nut |
| Housing Material | - |
| Contact Material | Brass |
| Cable Opening | - |
| Panel Hole Size | - |
| Thread Size | 1/4"-32 |
| Operating Temperature | -20°C ~ 85°C |
