| 原厂 | Molex | 制造商型号 | 146153-1300 |
|---|---|---|---|
| 供应商 |
Element14 HK
英国仓
|
供应商型号 | 3498923 |
| 类型 | RF天线 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

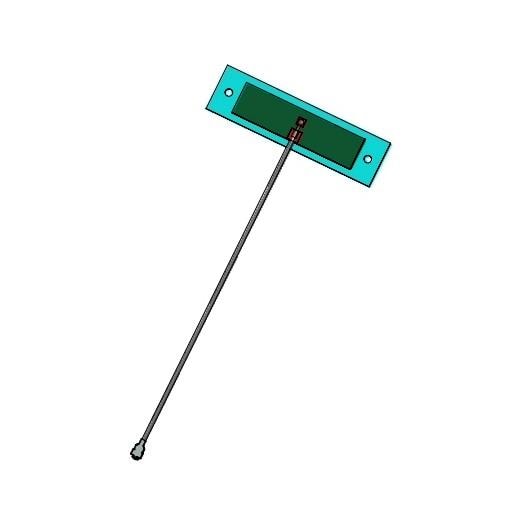

| 产品描述 | Antennas 2.4/5G Dual Band Flex MHF4 300mm Lgth | ||
| 规格参数 | 数值 |
|---|---|
| Product | Antenna Kit |
| Technology | WiFi |
| Type | |
| Minimum Frequency | 2.4 GHz |
| Maximum Frequency | 5 GHz |
| Gain | 2.2 dBi, 2.8 dBi |
| Termination Style | Solder |
| Mounting Style | Cable |
| Bandwidth | |
| Minimum Operating Temperature | |
| Maximum Operating Temperature | |
| Impedance | 50 Ohms |
| VSWR | |
| Series | 146153 |
| Length | 34.9 mm |
| Width | 9 mm |
| Height | |
| Antenna Connector Type | MHF4 |
| Cable Length | 300 mm |
| Application | WiFi |
