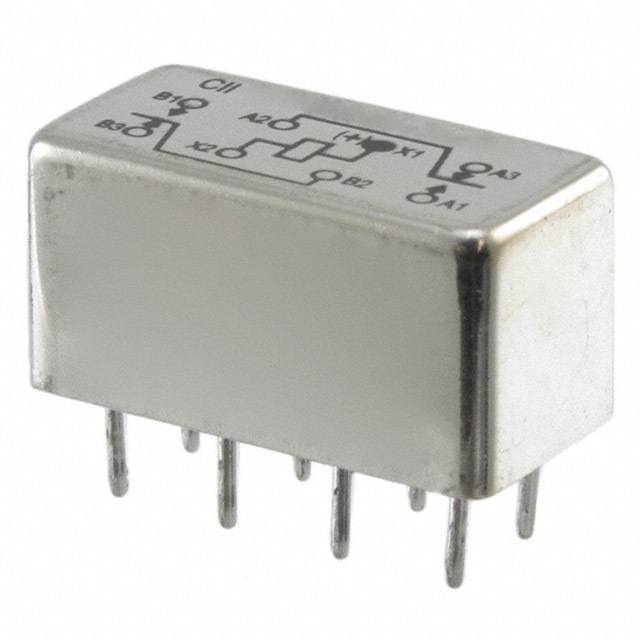

| 原厂 | TE Connectivity | 制造商型号 | HFW1201K45M |
|---|---|---|---|
| 供应商 |
Element14 CN
新加坡仓
|
供应商型号 | 2783770 |
| 类型 | 继电器-未分类 | 批号 | -- |
| 包装数 | -- | 包装 | -- |
| 产品描述 | General Purpose Relay DPDT (2 Form C) Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 37.86mA |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2A |
| Switching Voltage | 28VDC - Nom |
| Turn On Voltage (Max) | 13.5 VDC |
| Turn Off Voltage (Min) | 1.5 VDC |
| Operate Time | 4ms |
| Release Time | 4ms |
| Features | Sealed - Hermetically |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | - |
| Coil Power | 1 W |
| Coil Resistance | 700 Ohms |
| Operating Temperature | -65°C ~ 125°C |
