| 原厂 | Coto Technology | 制造商型号 | RI-23AAA |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | RI-23AAA |
| 类型 | 磁簧开关 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

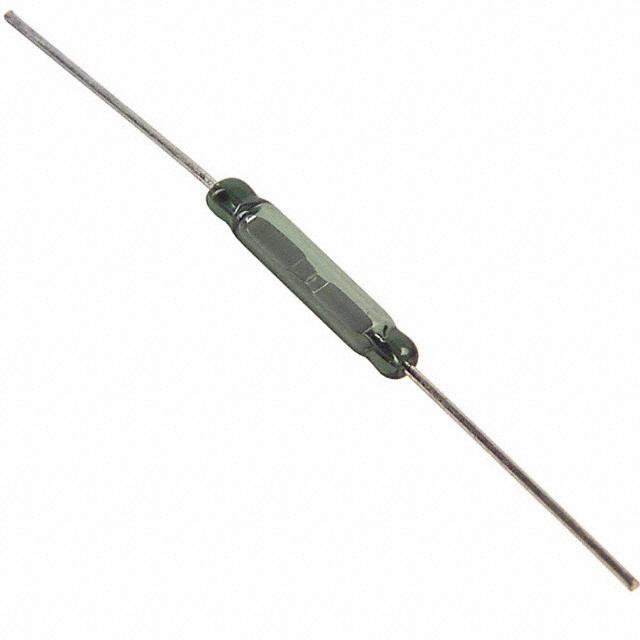

| 产品描述 | Glass Body Reed Switch SPST-NO 8 ~ 16AT Operate Range 10W 250mA (AC/DC) 140V Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Type | Glass Body |
| Circuit | SPST-NO |
| Operate Range | 8 ~ 16AT |
| Release Range | 4 ~ 14AT |
| Current - Switching | 250mA (AC/DC) |
| Voltage - Switching AC | 140V |
| Voltage - Switching DC | 200V |
| Power - Rated | 10W |
| Operate Time | 0.1ms |
| Release Time | 0.07ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 1.811" (46.00mm) |
| Size - Body | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) |
| Height Above Board | - |
| Operating Temperature | -55°C ~ 125°C |
| Capacitance | 0.30pF |
| Current - Carry | 1A (DC) |
