| 原厂 | Cinch Connectivity Solutions | 制造商型号 | 133-8333-401 |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | 133-8333-401 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

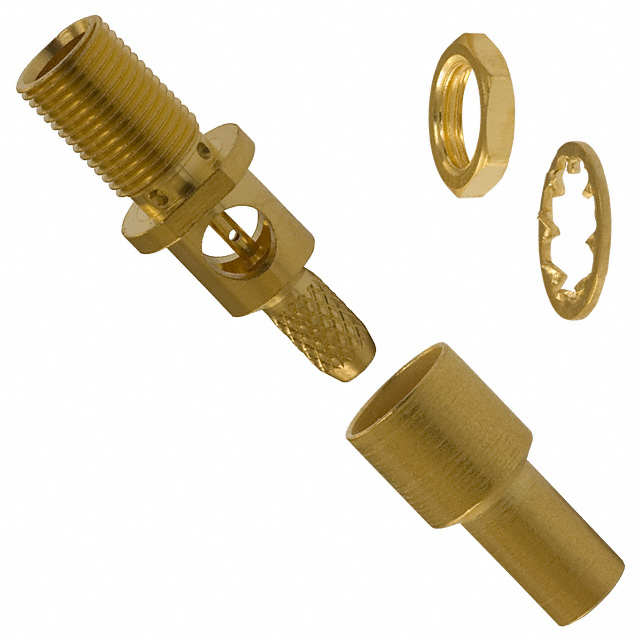

| 产品描述 | CONN MCX JACK STR 75 OHM CRIMP | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Connector Style | MCX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp or Solder |
| Shield Termination | Crimp |
| Impedance | 75 Ohm |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Cable Group | RG-179, 187 |
| Fastening Type | Snap-On |
| Frequency - Max | 6GHz |
| Number of Ports | 1 |
| Features | - |
| Housing Color | Gold |
| Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Sleeve |
| Body Material | Brass |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Material | Beryllium Copper |
| Voltage Rating | 335V |
| Mating Cycles | 500 |
| Insertion Loss | 0.1dB |
