| 原厂 | Amphenol | 制造商型号 | 031-71016-RFX |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | 031-71016-RFX |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

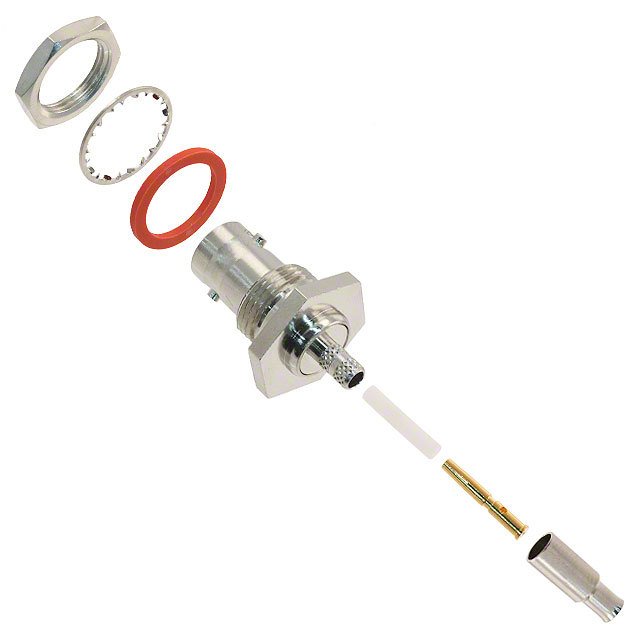

| 产品描述 | BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Shield Termination | Crimp |
| Impedance | 75 Ohm |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Cable Group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4GHz |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Voltage Rating | 500V |
| Operating Temperature | - |
