| 原厂 | Amphenol | 制造商型号 | 908-NM22106 |
|---|---|---|---|
| 供应商 | G7A002 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | 908-NM22106 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

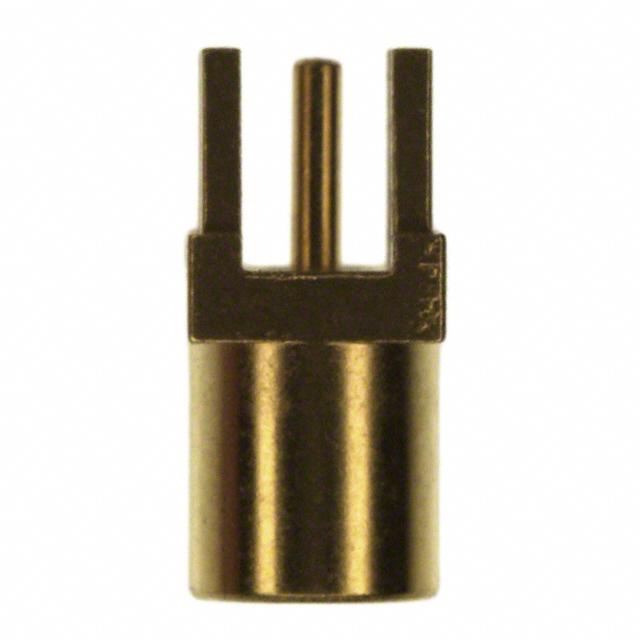

| 产品描述 | MMCX Connector Jack, Female Socket 50 Ohm Through Hole Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | MMCX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole |
| Cable Group | - |
| Fastening Type | Snap-On |
| Frequency - Max | 6GHz |
| Features | Non-Magnetic |
| Housing Color | Gold |
| Ingress Protection | - |
| Body Material | Beryllium Copper |
| Body Finish | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | - |
| Operating Temperature | -65°C ~ 165°C |
